6.5m x 5.5m model of Cardiff at 1:750 scale

Here’s a first glimpse of the massive project we’ve been working on for the last 5 months, a 6.5 x 5.5 metre interactive model of Cardiff. We set it up for the first time yesterday at a major launch in the Cardiff City football stadium where it was the centre of attention for over 200 specially invited guests. The model has been designed for use in a permanent marketing suite to promote the city of Cardiff to national and international investors. It is a fully interactive model controlled via a large touchscreen which activates over 30 different lighting zones on the model and at the same time displays relevant information pages on the screen. The touchscreen images are also projected onto a large screen above the model so that the information is visible to all. More information to follow soon.

Button controlled model for Northern PowerGrid

CLNR stands for Customer Led Network Revolution, a method of optimizing the power supply network based on immediate reaction to varying customer demands. The purpose of this model was to illustrate Northern Powergrid’s strategies for maximizing the efficiency of their supplies to both domestic and commercial users. The model looks deceptively simple but actually features some complex programming to demonstrate how the network adjusts to the demands of different users at different times of the day, including storing surplus power for later use. The button panel allows the user to set up varying power requirements which are indicated by lights on the model (turning red) and then press further buttons that illustrate how the demands are resolved (turning the lights green) with energy efficient systems and procedures.

Five models reflecting Atkins involvement in the London Olympic Park

Designed and built for Atkins Engineers, this group of five interactive models was commissioned to reflect Atkins' huge involvement in the construction of the London Olympic Park. Each model highlights a particular aspect of the unglamorous but essential engineering work Atkins carried out at the site, from creating an artificial level surface for the equestrian event, to installing fundamental infrastructure such as bridges, water supplies and drainage. One of the models, which incorporates scrolling LED messages and allows the operator to lift a table tennis ball into the air by controlling a fan, conveys how Atkins designed complex climate control systems to "engineer" the air in many of the park's specialist sporting venues. The models were used initially at an exhibition event linked with the start of the Olympics but will subsequently be displayed in the reception areas of Atkins' main offices around the UK. There is also a plan to export one of the models to the Middle East. .

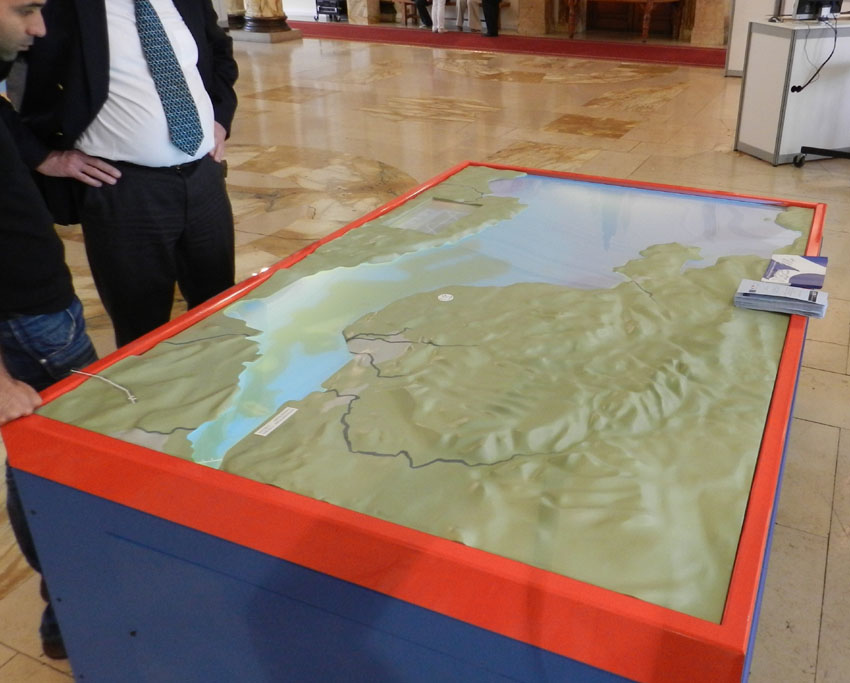

Contoured model with interactive back projection

We designed and built this topographical model for display at a Royal Academy of Engineering exhibition. The model had to incorporate an acrylic “sea level” panel suitable for back-projection of computer modelled animations showing currents, tidal flows, sediment deposits, etc. It was a technically demanding project because we had to make sure the back projected animation fitted perfectly within the outline of the coast. The vertical scale was exaggerated to accentuate the distinctive character of the South Wales Valleys.

Interactive model with moving lights and screen interface

After being impressed by the variety and quality of projects on our website, British Sugar came directly to us to design and build this interactive model demonstrating the sophisticated, sustainable manufacturing processes at their main sugar production facility at Wissington. The model design was based on a stylized 2D visual depicting the complex interrelated systems, beneficial by-products and energy efficiency of what is Britain’s biggest sugar beet processing plant. We had to develop this 2D layout into an informative three dimensional display model complete with directional moving lights, illuminated images, and a video presentation with on-screen interface. As you can see from the pictures, the model also had to be eye-catching and attractive with a high quality finish throughout. The client was really pleased with the finished model and informed us they wanted to work with us again in the near future – a sweet result all round!
