Our third warehouse model this year.

We seem to have found a niche for automated warehouse models as this is the third we’ve produced this year. They’re technically challenging projects due to the amount of small detail that needs to be modelled in the racking and conveyor belt systems but probably the most challenging aspect of these models is interpreting the extensive and highly detailed CAD files we have to work from. Fortunately we have a lot of experience producing complex industrial models of all descriptions so it’s become somewhat of a specialized field for us. If you’ve got a requirement for a model of machinery or an industrial installation of some sort, we’d welcome the opportunity to provide a quotation.

Three presentation models for drilling rig manufacturer.

At 1:400 scale these drilling rig models were only just over 200mm wide so were extremely small and fiddly to make. For example the handrails you can see in the close-up photos were less than 3mm tall. Because of the small scale the client said the models could be slightly simplified, which they are, but as you can see from the pics we still managed to show a high level of fine detail. When completed the three models were shipped to the client in Aberdeen, after which they were shipped on to their own clients as gifts.

Stylized model showing multiple industries.

The brief for this project was to create a physical model of an existing CGI created landscape showing all the various industrial sectors the company worked in. The only information they were able to give us was a set of still-frame images of the landscape so we had to create our own CAD from scratch before we could start constructing the model. The muted greys and greens are an exact copy of the CGI graphic but we feel they work very well for this stylized industrial landscape. As you can see from the photo above, we also incorporated LED lighting. The system allowed 16 zones to be individually controlled from the client’s laptop.

Second model this year for the subsea industry.

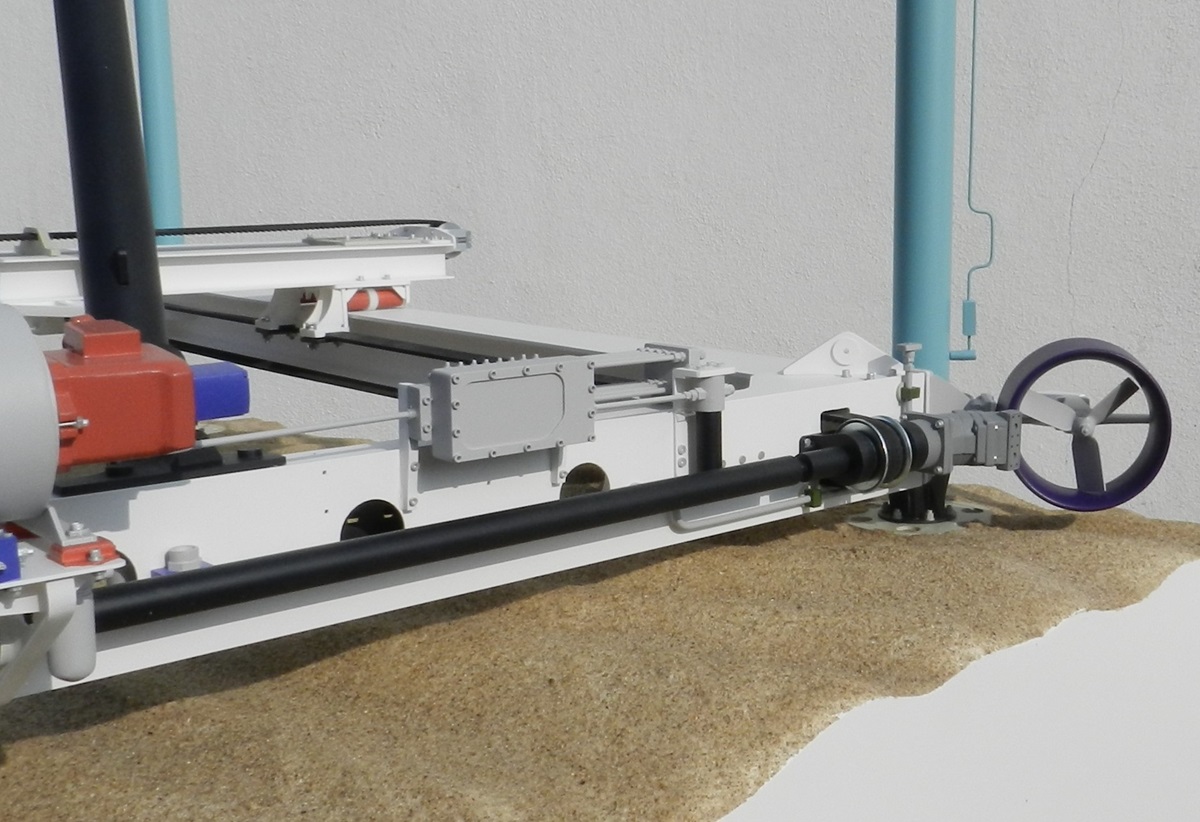

Last month we produced a life-size model of an offshore mooring component and we’ve followed that up this month with another “under water” project, a 1:8 scale model of a seabed scanning machine that locates unexploded ordnance on the sea floor. This was a technically complex project because it had to include a movable boom arm and a traversing gantry linked to two belt and cog mechanisms on opposite sides of the main structure. The model was set on a sloping seabed to demonstrate the self levelling legs that were a major feature of this sophisticated piece of equipment.

Industrial Model For The Offshore Mooring Market.

When we were commissioned to produce this 2.2m high display model of a mooring component for the offshore wind turbine industry, the client’s overriding brief was to keep it as light as possible to make their lives easier when transporting it overseas to exhibition events. They also wanted it to fit into two compact, flight cases, including the stand, so it could shipped as “extra luggage” on flights. Our solution was to use vac-formed plastic shells for the main body of the model and hollow box construction for the yellow end sections which kept the overall weight under 20Kg. To split the model between the two flight cases we designed it in four main sections that could be easily assembled on site. We then designed a stand that could be “flat-packed” into the flight cases but was also easy to assemble on site.
